Surge protection for PV power plants installations

PV power plants present a high risk of direct lightning impact and surges due to the large exposed area and the long lengths of the electric conductors.In order to avoid problems leading to costly damage and downtime, it is compulsory to install surge protectors at key points in the PV system.

Selection of surge protectors

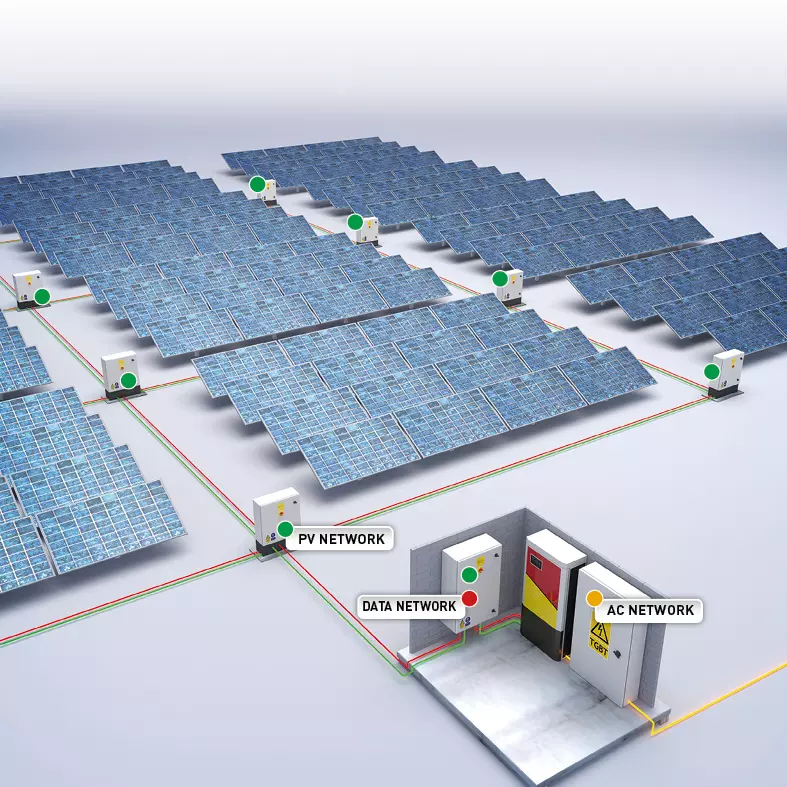

On this table you will find the surge protection solution for Photovoltaic power plants.

Location

Model

Description

PV network

DS60VGPV-1500G/51

Type 1 + 2 Photovoltaic surge protector
- Iimp 12,5 kA

- VG Technology

PV network

DS50VGPVS-1000/12KT1

Type 1 + 2 Photovoltaic surge protector
- Iimp/Itotal : 6.25 / 12.5 kA (10/350µs)

- VG Technology

AC network

DAC1-13S-31-275

Type 1+2 AC surge protector
- In 20 kA

- Remote signaling

DATA network

DLA-24D3

1-pair pluggable surge protector
- In 5 kA

- Imax 20 kA

- Remote signaling
