WATER WASTE TREATMENT SURGE PROTECTORS

Surge Protectors for water treatment facilities and remote management

As the technology for Water & Wastewater treatment plants becomes more sophisticated, the risk of damage caused by lighting strikes and power line disturbances become intolerable. To assure the protection of these installations, it is necessary to deploy a coordinated system of surge protection devices (SPD) to assure continuous operation.

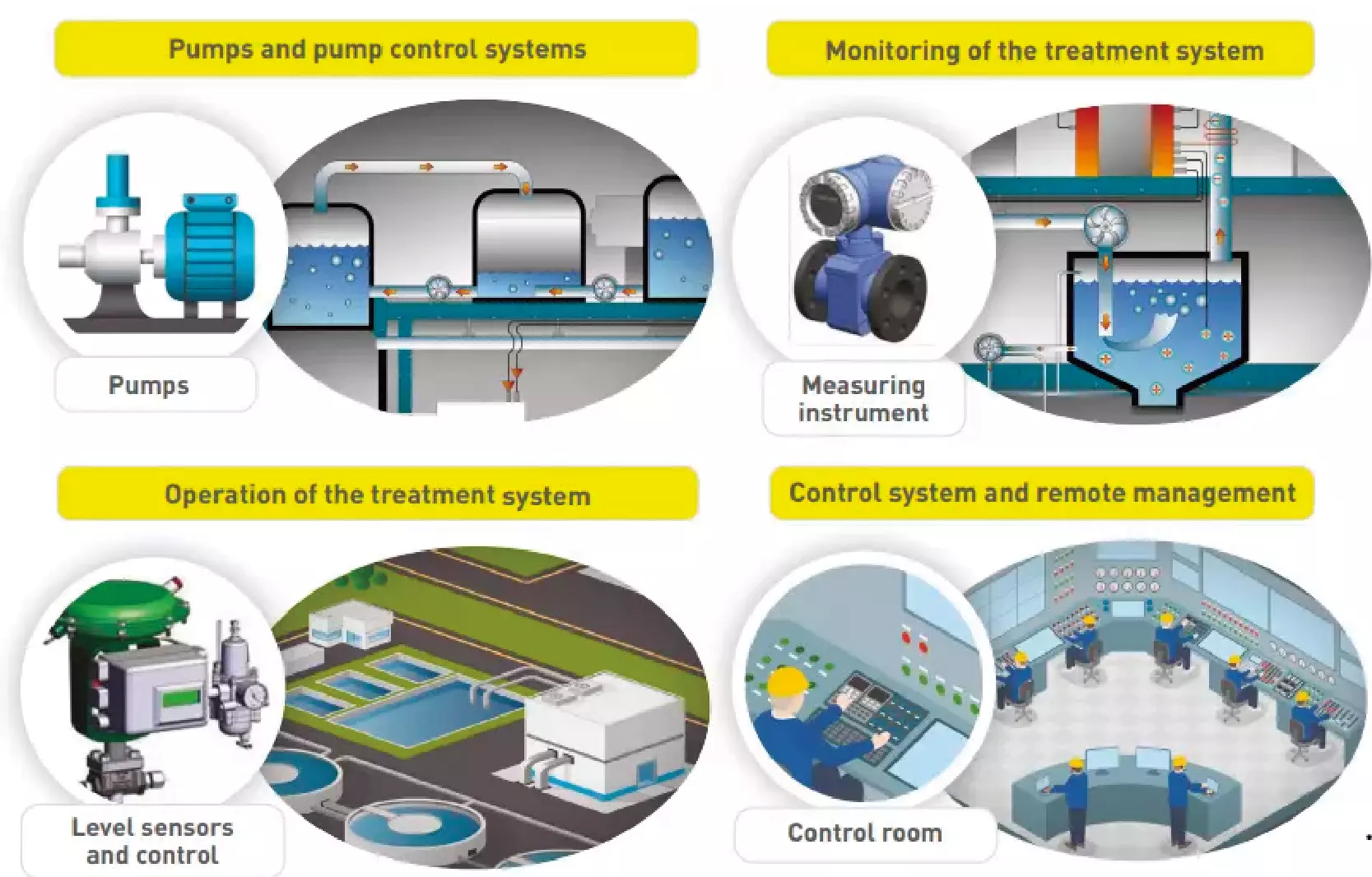

Equipments to protect :

FLOW METER, CHLORINE ANALYZER, TEMPERATURE SENSOR, LEVEL SENSOR, PUMP, CONTROL CIRCUIT, ETC...

Implementation of coordinated system of protection against transient overvoltages

SPD Installation

位置位置型号
1AC power-Main electrical panel

DAC1-13VGS-31-275

DS254VG-300/G

DAC1-13VGS-31-275
DS254VG-300/G
2Coaxial antenna-radio wireless

P8AX

3AC power-Distribution panel

DAC40CS-31-275

DAC40CS-31-275
4/5Control circuit-Remote management

DAC15CS-31-275

DAC15CS-31-275
6Telecom-Data-Ethernet

DLA

MJ8-POE-C6A

DLA
MJ8-POE-C6A
7Control room

DAC50S-31-275

MJ8-POE-C6A

DLA

DAC50S-31-275
MJ8-POE-C6A
DLA
